TUIO::TuioPoint Class Reference

#include <TuioPoint.h>

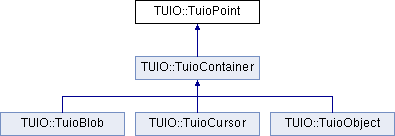

Inheritance diagram for TUIO::TuioPoint:

Public Member Functions
	TuioPoint (float xp, float yp)
	TuioPoint (TuioTime ttime, float xp, float yp)
	TuioPoint (TuioPoint *tpoint)
virtual	~TuioPoint ()
void	update (TuioPoint *tpoint)
void	update (float xp, float yp)
void	update (TuioTime ttime, float xp, float yp)
float	getX () const
float	getY () const
float	getDistance (float xp, float yp) const
float	getScreenDistance (float xp, float yp, int w, int h) const
float	getDistance (TuioPoint *tpoint) const
float	getAngle (float xp, float yp) const
float	getAngle (TuioPoint *tpoint) const
float	getAngleDegrees (float xp, float yp) const
float	getAngleDegrees (TuioPoint *tpoint) const
int	getScreenX (int width) const
int	getScreenY (int height) const
TuioTime	getTuioTime () const
TuioTime	getStartTime () const
void	addPositionThreshold (float thresh)
void	removePositionThreshold ()
void	addPositionFilter (float mcut, float beta)
void	removePositionFilter ()

Protected Attributes
float	xpos
float	ypos
TuioTime	currentTime
TuioTime	startTime
OneEuroFilter *	xposFilter
OneEuroFilter *	yposFilter
float	posThreshold

Detailed Description

The TuioPoint class on the one hand is a simple container and utility class to handle TUIO positions in general, on the other hand the TuioPoint is the base class for the TuioCursor and TuioObject classes.

Author

Martin Kaltenbrunner

Version

1.1.6

Constructor & Destructor Documentation

TuioPoint() [1/3]

TuioPoint::TuioPoint	(	float	xp,
		float	yp
	)

The default constructor takes no arguments and sets its coordinate attributes to zero and its time stamp to the current session time.

TuioPoint() [2/3]

TuioPoint::TuioPoint	(	TuioTime	ttime,
		float	xp,
		float	yp
	)

This constructor takes a TuioTime object and two floating point coordinate arguments and sets its coordinate attributes to these values and its time stamp to the provided TUIO time object.

Parameters

ttime	the TuioTime to assign
xp	the X coordinate to assign
yp	the Y coordinate to assign

TuioPoint() [3/3]

TuioPoint::TuioPoint

(

TuioPoint *

tpoint

)

This constructor takes a TuioPoint argument and sets its coordinate attributes to the coordinates of the provided TuioPoint and its time stamp to the current session time.

Parameters

tpoint

the TuioPoint to assign

~TuioPoint()

virtual TUIO::TuioPoint::~TuioPoint ( )

inlinevirtual

The destructor is doing nothing in particular.

Member Function Documentation

getAngle() [1/2]

float TuioPoint::getAngle	(	float	xp,
		float	yp
	)		const

Returns the angle to the provided coordinates

Parameters

xp	the X coordinate of the distant point
yp	the Y coordinate of the distant point

Returns

the angle to the provided coordinates

getAngle() [2/2]

float TuioPoint::getAngle

(

TuioPoint *

tpoint

)

const

Returns the angle to the provided TuioPoint

Parameters

tpoint

the distant TuioPoint

Returns

the angle to the provided TuioPoint

getAngleDegrees() [1/2]

float TuioPoint::getAngleDegrees	(	float	xp,
		float	yp
	)		const

Returns the angle in degrees to the provided coordinates

Parameters

xp	the X coordinate of the distant point
yp	the Y coordinate of the distant point

Returns

the angle in degrees to the provided TuioPoint

getAngleDegrees() [2/2]

float TuioPoint::getAngleDegrees

(

TuioPoint *

tpoint

)

const

Returns the angle in degrees to the provided TuioPoint

Parameters

tpoint

the distant TuioPoint

Returns

the angle in degrees to the provided TuioPoint

getDistance() [1/2]

float TuioPoint::getDistance	(	float	xp,
		float	yp
	)		const

Returns the distance to the provided coordinates

Parameters

xp	the X coordinate of the distant point
yp	the Y coordinate of the distant point

Returns

the distance to the provided coordinates

getDistance() [2/2]

float TuioPoint::getDistance

(

TuioPoint *

tpoint

)

const

Returns the distance to the provided TuioPoint

Parameters

tpoint

the distant TuioPoint

Returns

the distance to the provided TuioPoint

getScreenDistance()

float TuioPoint::getScreenDistance	(	float	xp,
		float	yp,
		int	w,
		int	h
	)		const

Returns the distance to the provided coordinates

Parameters

xp	the X coordinate of the distant point
yp	the Y coordinate of the distant point

Returns

the distance to the provided coordinates

getScreenX()

int TuioPoint::getScreenX

(

int

width

)

const

Returns the X coordinate in pixels relative to the provided screen width.

Parameters

width

the screen width

Returns

the X coordinate of this TuioPoint in pixels relative to the provided screen width

getStartTime()

TuioTime TuioPoint::getStartTime

(

)

const

Returns the start time of this TuioPoint as TuioTime.

Returns

the start time of this TuioPoint as TuioTime

getTuioTime()

TuioTime TuioPoint::getTuioTime

(

)

const

Returns current time stamp of this TuioPoint as TuioTime

Returns

the time stamp of this TuioPoint as TuioTime

getX()

float TuioPoint::getX

(

)

const

Returns the X coordinate of this TuioPoint.

Returns

the X coordinate of this TuioPoint

getY()

float TuioPoint::getY

(

)

const

Returns the Y coordinate of this TuioPoint.

Returns

the Y coordinate of this TuioPoint

update() [1/3]

void TuioPoint::update

(

TuioPoint *

tpoint

)

Takes a TuioPoint argument and updates its coordinate attributes to the coordinates of the provided TuioPoint and leaves its time stamp unchanged.

Parameters

tpoint

the TuioPoint to assign

update() [2/3]

void TuioPoint::update	(	float	xp,
		float	yp
	)

Takes two floating point coordinate arguments and updates its coordinate attributes to the coordinates of the provided TuioPoint and leaves its time stamp unchanged.

Parameters

xp	the X coordinate to assign
yp	the Y coordinate to assign

update() [3/3]

void TuioPoint::update	(	TuioTime	ttime,
		float	xp,
		float	yp
	)

Takes a TuioTime object and two floating point coordinate arguments and updates its coordinate attributes to the coordinates of the provided TuioPoint and its time stamp to the provided TUIO time object.

Parameters

ttime	the TuioTime to assign
xp	the X coordinate to assign
yp	the Y coordinate to assign

Member Data Documentation

currentTime

TuioTime TUIO::TuioPoint::currentTime

protected

The time stamp of the last update represented as TuioTime (time since session start)

startTime

TuioTime TUIO::TuioPoint::startTime

protected

The creation time of this TuioPoint represented as TuioTime (time since session start)

xpos

float TUIO::TuioPoint::xpos

protected

X coordinate, representated as a floating point value in a range of 0..1

ypos

float TUIO::TuioPoint::ypos

protected

X coordinate, representated as a floating point value in a range of 0..1

---

The documentation for this class was generated from the following files:

• TuioPoint.h
• TuioPoint.cpp
